Roof and Wall Moisture Scanner - RWS

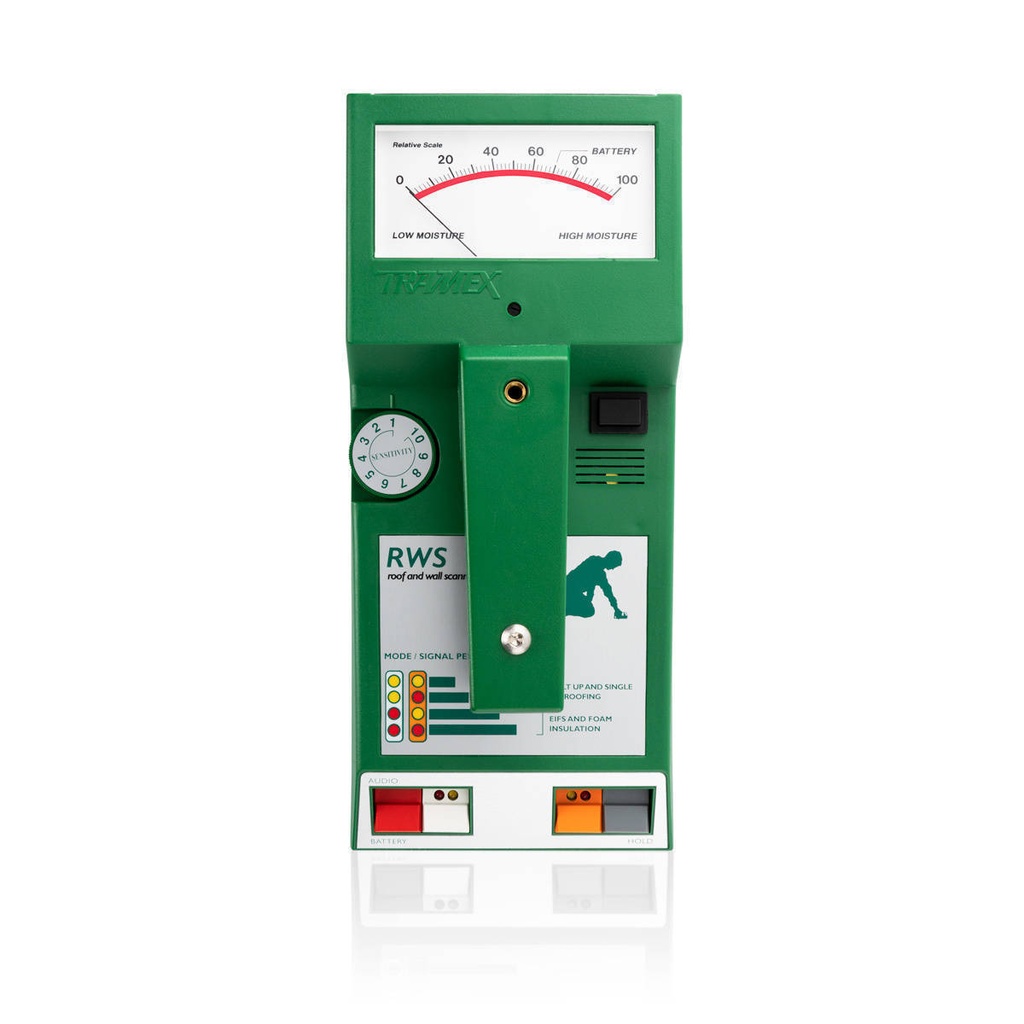

The Tramex Roof and Wall Scanner is a handheld pinless roof & wall moisture meter designed to detect and evaluate moisture conditions in roof and walls systems.

Requiere cotización

Esta combinación no existe.

Contáctenos

SKU: RWS

DESCRIPCIÓN

The Tramex Roof and Wall Scanner is an instant, precise, multi-mode, non-destructive impedance scanner for evaluating moisture conditions in roofing (as per ASTM D7954), EIFS, foam insulation systems & other building envelope applications.

The RWS Multi-mode function allows for depth penetration and sensitivity selection and can help trace leaks and pin-point their source, which makes it a very beneficial moisture detector for walls and roofs.

Características

Complies with ASTM D7954.
For non-destructive moisture evaluation of roofs, EIFS, foam insulation systems & other building envelope applications.
To evaluate the extent of the moisture problem and help trace and pin-point its source.
Multi-mode functions allowing for depth penetration and sensitivity selection.
Fast and easy to operate giving instant clear readings.
"Hold” function facilitates ease of recording readings.
Lightweight, handheld and battery operated.

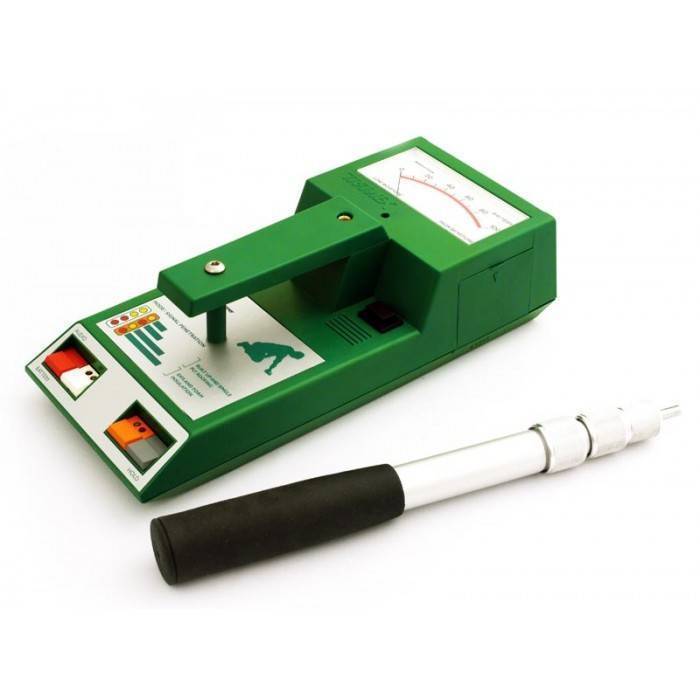

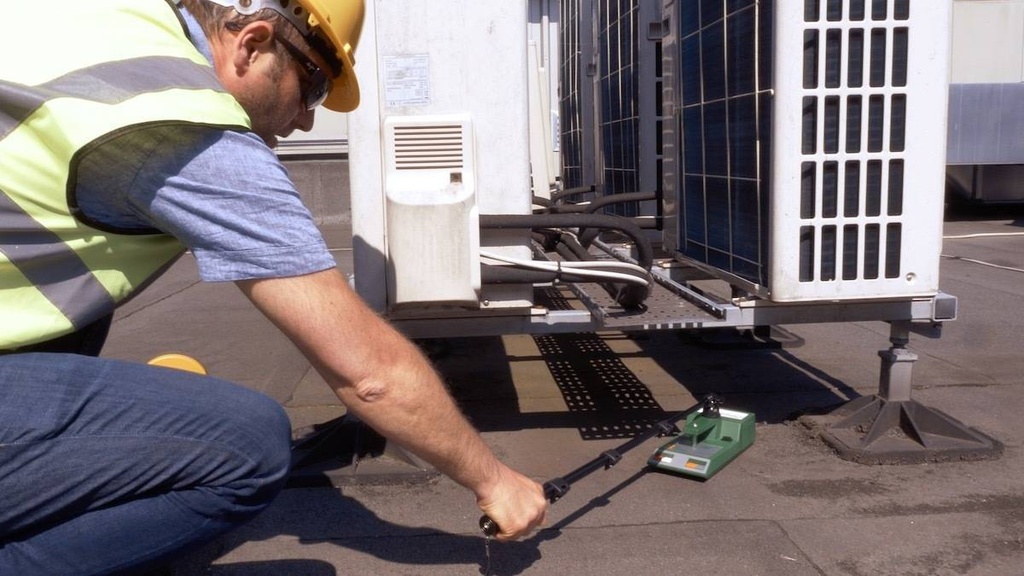

Telescopic handle (for use on roofs).
Inexpensive to purchase and operate compared to other non-destructive testing methods.
Professional roofing moisture meter for the water damage industry

Cómo funciona

The Roof & Wall Scanner detects and evaluates the moisture conditions within roofing and wall systems by non-destructively measuring the electrical impedance. A low frequency electronic signal is transmitted into the material under test via the electrodes in the base of the instrument. The strength of this signal varies in proportion to the amount of moisture in the material under test. The Roof & Wall Scanner determines the strength of the current and converts this to a comparative moisture content value, displaying it on a large clear analog dial.

Operating procedure:

Moisture detection testing can be done at the time of installation, as part of an ongoing maintenance program, or prior to reparation of damaged roofing and wall systems. The RWS is a handheld, hardwearing instrument with dual operating modes for roofing and EIFS/Foam insulation systems, each with two ranges of signal penetration. Having calibrated the RWS on a known acceptably dry area, the RWS gives instant readings for the moisture survey.

Especificaciones

Size:	4.9" x 10.8" x 2.9" (125mm x 275mm x 75mm)
Weight:	1.88lbs (853g)
Construction:	ABS Body
Power:	9 volt PP3 Battery (included)
Display:	Analog
Depth of penetration:	4" (100mm)
Sensitivity:	Four Ranges: Roofing Mode with high and low sensitivity. EIFS / Foam Roof Insulation Mode with high and low sensitivity.
Accessories:	Leather carry case. Telescopic handle for use on roofs only.
Limitations:	Some EPDM, Butyl rubber roofing and other conductive roofing. Hard Coat Stucco, wire lath or wire mesh reinforced finishes.
