Tramex Remote Environmental Monitoring System WME/MC - TREMS-WME/MC

https://cotecno.opendrive.cl/web/image/product.template/594358/image_1920?unique=2f009c5

The Tramex Remote Environmental Monitoring System WME, for ambient temperature & RH and in-situ monitoring of wood %MC, comprises 5 RH sensors and 5 WME probes.

$ 0 0.0 CLP $ 0 IVA incluido

$ 1 IVA incluido

Requiere cotización

Esta combinación no existe.

Contáctenos
SKU: TREMS-WMEMC



Compartir

* CURRENTLY OUT OF STOCK

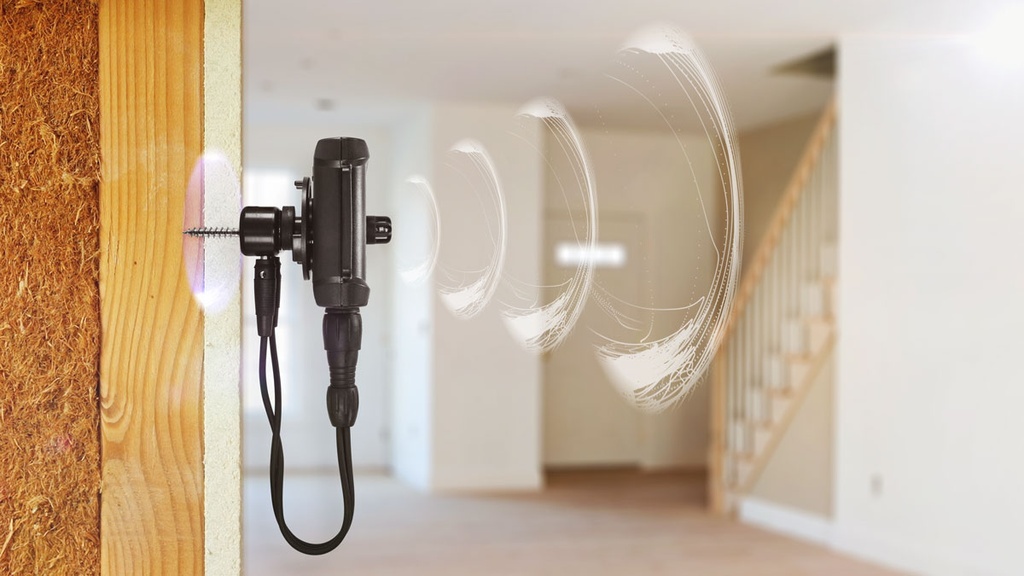

The Tramex Remote Environmental Monitoring System WME/MC allows for Moisture Content (%MC) monitoring in wood and Wood Moisture Equivalent (WME) monitoring in a variety of building materials such as wood-based products, drywall or plasterboard. Additionally, the system enables ambient temperature and relative humidity monitoring to ensure optimal environmental conditions.

Designed and developed by Tramex, this state of the art technology can notify users allowing for quick response to in-situ and environmental changes.

The TREMS-WME/MC kit comprises a Tramex Cloud Station router, 5 CS-RHTX Tramex Cloud Sensors for ambient conditions, and 5 external WME/MC probes.

Multiple Sensors can be used with one Station and additional Sensor and WME/MC probe Accessory Packs are also available, meeting your specific monitoring requirements.

Registration and on-site set-up is simple using a QR code check-in procedure. The on-site Sensors, with long-life batteries, transmit relative humidity, temperature (ºC and ºF), dew point, grains per pound / grams per kilo and WME/MC readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform.

Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor status from any browser.

There are no subscription fees and there is free data with the Tramex Remote Environmental Monitoring System WME/MC.

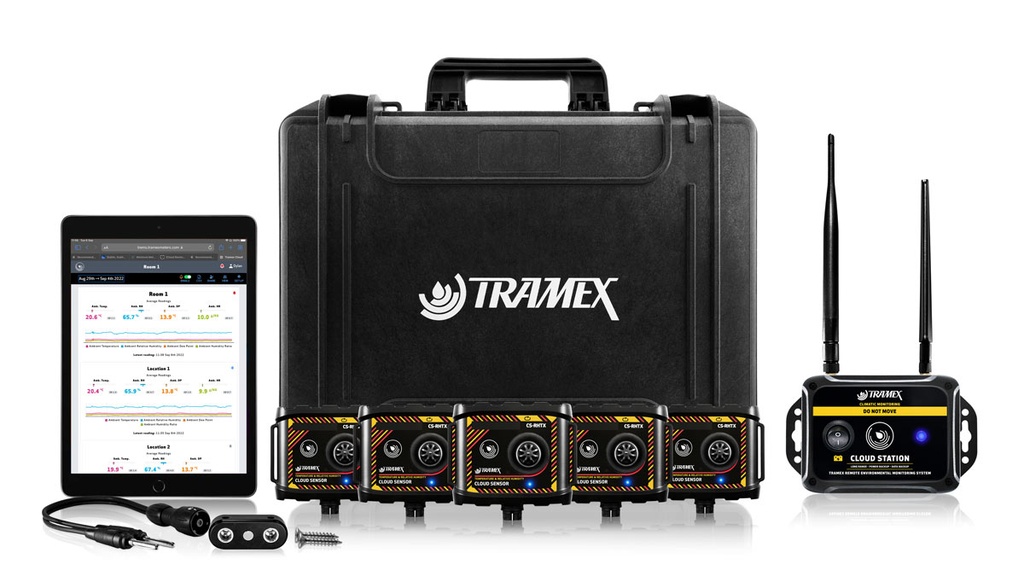

Contenido del kit

  1. 5 x CS-RHTX Tramex Cloud Sensors
  2. 5 x WME/MC electrode probes
  3. 1 x Tramex Cloud Station
  4. 1 x Heavy Duty Protective Carry Case
  5. Tramex Cloud Software Monitoring platform (Tablet not included)
  6. Antennae for Cloud Station

Especificaciones

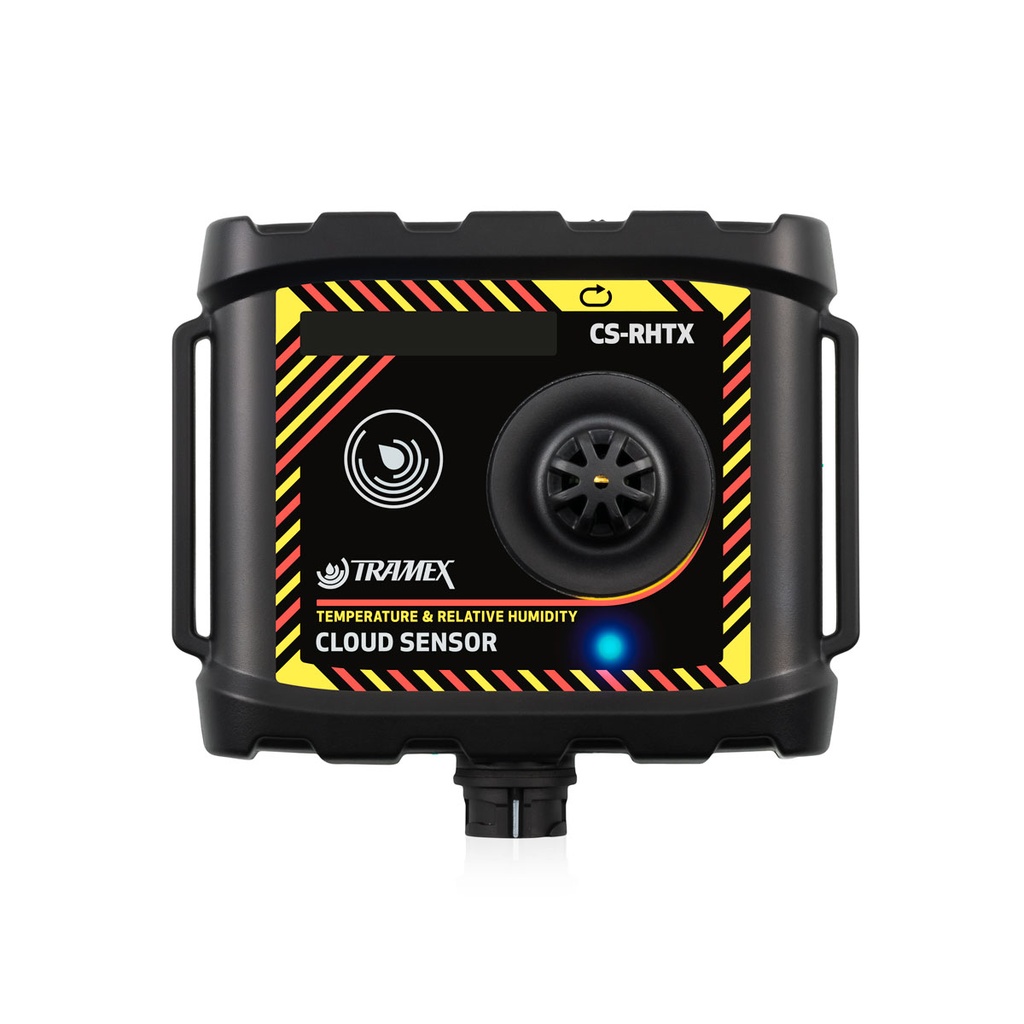

Cloud Xtra Sensor

Temperature Sensor Specifications:

Exceptional Accuracy: ±0.1ºF Range -4ºF to 158ºF(±0.1 °C Range -20°C to 70°C)
Range: 4ºF to 158ºF( -20°C to 70°C)
Sensor Protection: PTFE Film protects sensor opening from water & dust
Drift: <0.04ºF (0.03ºC) per year



Relative Humidity Sensor Specifications:

Exceptional Accuracy: ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
Range: 0 to 100%RH
Resolution 0.1% over the complete range
Drift <0.25%RH per year



Sensor Specifications:

Transmission Range: Up to 2 miles line-of-sight
Communication Frequency: Multiple readings per hour.
Identification: Items individually coded for ease of install and logging identification.
Size: 3.94” x 3.54” x 1.38” (100mm x 90mm x35mm)
Weight: 3.53oz (100g)
Construction: ABS enclosure
Power: Built in long-life CR123A battery
Included: Wall Mounting

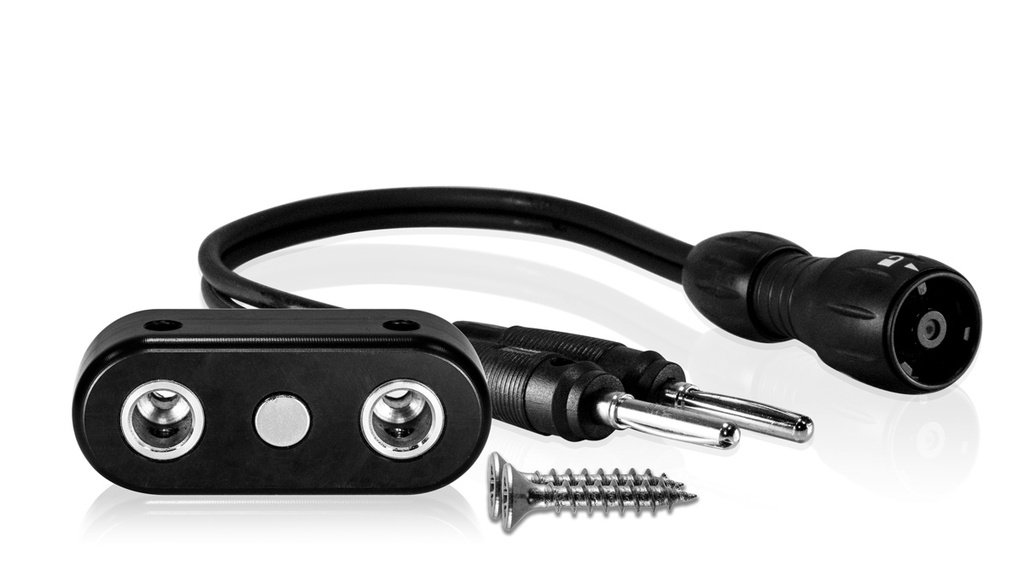

WME/MC Probe Specifications:

Wood Moisture Equivalent (WME/MC): 0 - 100



Tramex Cloud Specifications

Frequency: Region Specific frequency available
Security: WPA2-PSK encryption, no unwarranted telemetry/tracking.
Size: 5.9” x 3.6” x 2” (150mm x 90mm x 50mm)
Weight: 9.9oz (280g)
Power: Universal AC Power Adapter
Construction: Wall-mountable ABS enclosure



Data is stored free of charge for a period of 2 years, after which, following our data retention policy, you will need to download it.



Kit Specifications

Size: 17.1” x 14.2” x 5.5” (43.5cm x 36cm x 14cm)
Weight: 7.6lbs (3.56kg)
Power: 5 x CR123A 3-volt batteries (included)

Ficha técnica
